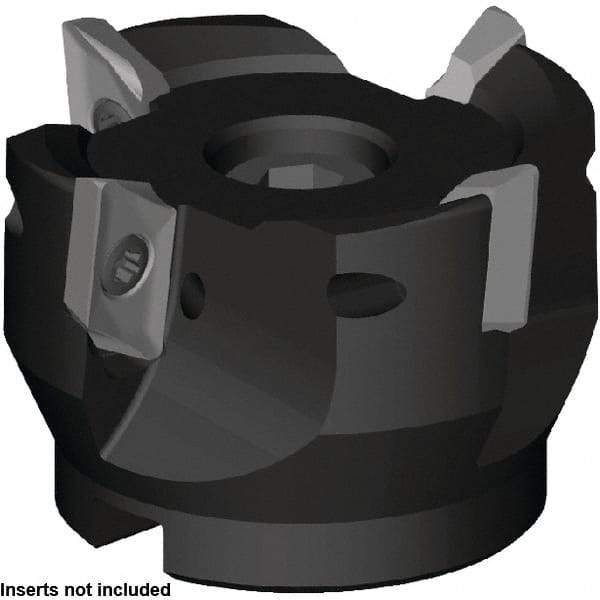

Kennametal - 3 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 2" High, ZDET 16M5..721 Insert Compatibility, Through Coolant, Series 5720VZ16
Item #: 47499975
Brand: Kennametal
Model #: 6241040
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Lead Angle | 0 |
| Overall Height (Inch) | 2 |
| Insert Compatibility | ZDET 16M5..721 |
| Series | 5720VZ16 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | 5720 |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 45.00 |
| Maximum Body Diameter (Decimal Inch) | 1.8980 |
| Maximum RPM | 30000 |
| Coolant Hole Diameter (Decimal Inch) | 0.1380 |
| Toolholder Material | Steel |
