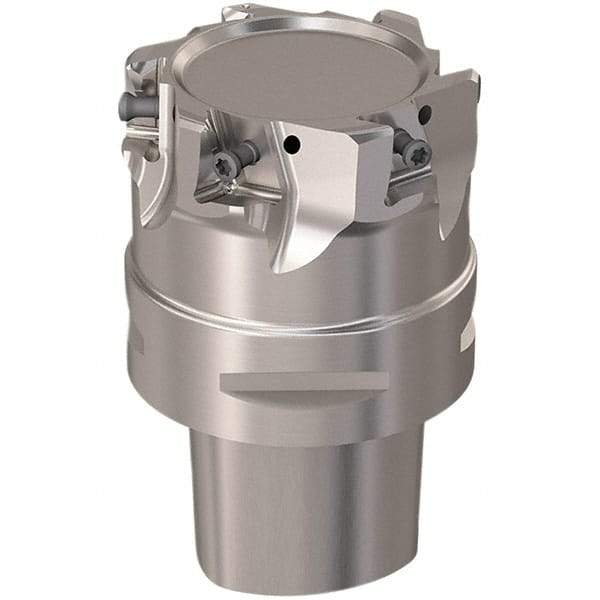

Seco - 66mm Cut Diam, 12mm Max Depth of Cut, 60mm OAL, Indexable Square Shoulder Slot Milling End Mill - LOEX12 Inserts, C6 Modular Connection, 90° Lead Angle, Through Coolant, Series C6-217.94-12
Item #: 47685193
Brand: Seco
Model #: 28991
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Cutting Diameter (Decimal Inch) | 2.5984 |
| Shank Type | Modular Connection |
| Modular Connection Size | C6 |
| Overall Length/Projection (mm) | 60.00 |
| Lead Angle | 90 |
| Series | C6-217.94-12 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.00 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| End Mill Type | Slot Milling |
| Cutter Style | C6-217.94-08 |
| Number of Flutes | 6 |
| Head Length (mm) | 60.00 |
| Weldon Flat | No |
| Insert Compatibility | LOEX12 |
| Maximum RPM | 8600 |
| Toolholder Material | Steel |
