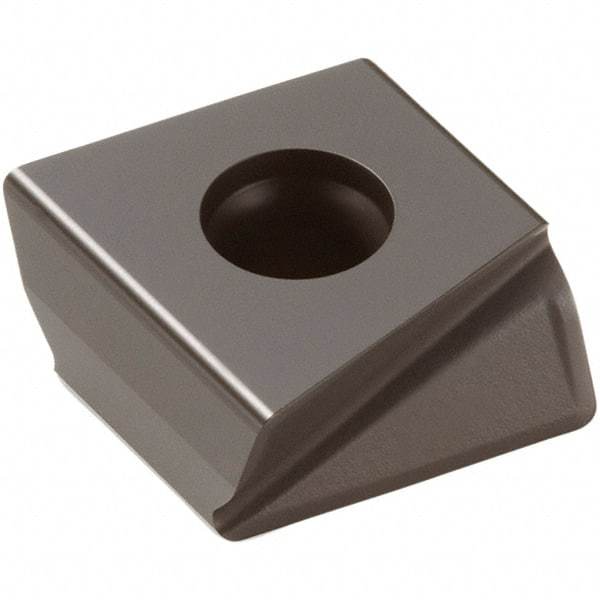

Seco - XNHQ140708 M11 Grade MK2050 Carbide Milling Insert - TiAlN/TiSiN Finish, 7.5mm Thick, 0.8mm Corner Radius
Item #: 47769336
Brand: Seco
Model #: 15453
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XNHQ |
| Insert Size | 140708 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | MK2050 |
| Coating | TiAlN/TiSiN |
| Width (mm) | 7.50 |
| Length (mm) | 14.00 |
| Thickness (mm) | 7.50 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.70 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | M11 |
| Cutting Edge Style | Honed |
| Cutter Series Compatibility | 335.25 |
