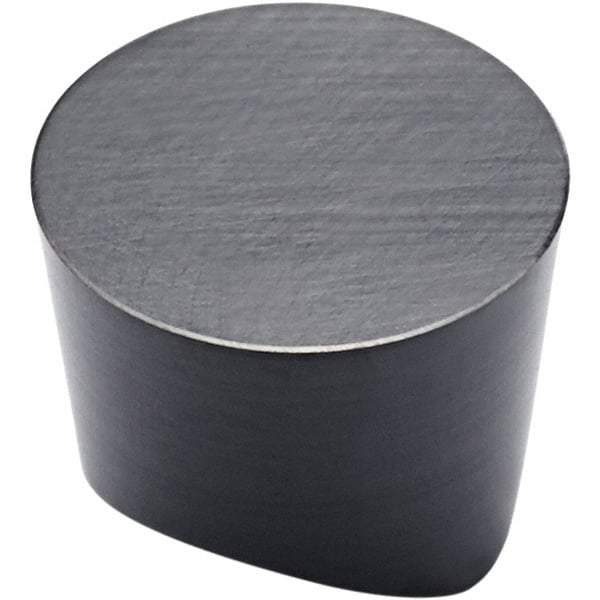

Seco - RCGX24 Grade CS100 Ceramic Turning Insert - Uncoated, Round, 1/4" Inscr Circle, 1/4" Thick
Item #: 47902119
Brand: Seco
Model #: 05571
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 24 |
| Material | Ceramic |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/4 |
| Manufacturer's Grade | CS100 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Relief Angle | 7 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered & Honed |
| FullRadius | Yes |
| MultiUseTool | Yes |
| Shape | Round |
