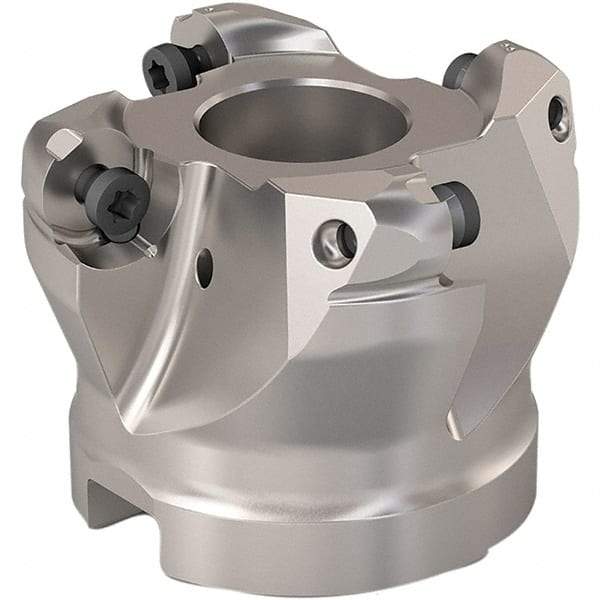

Seco - 40mm Cut Diam, 6mm Max Depth, 22mm Arbor Hole, 4 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - R220.29 Cutter Style, 12,300 Max RPM, 40mm High, Through Coolant, Series R220.29
Item #: 48050603
Brand: Seco
Model #: 13669
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | R220.29 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RP..1204 |
| Cutter Style | R220.29 |
| Through Coolant | Yes |
| Maximum RPM | 12300 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 42.00 |
| Insert Inscribed Circle (mm) | 12.00 |
| Keyway Width (mm) | 10.4000 |
| Cutting Direction | Right Hand |
| Overall Diameter (mm) | 52.0000 |
