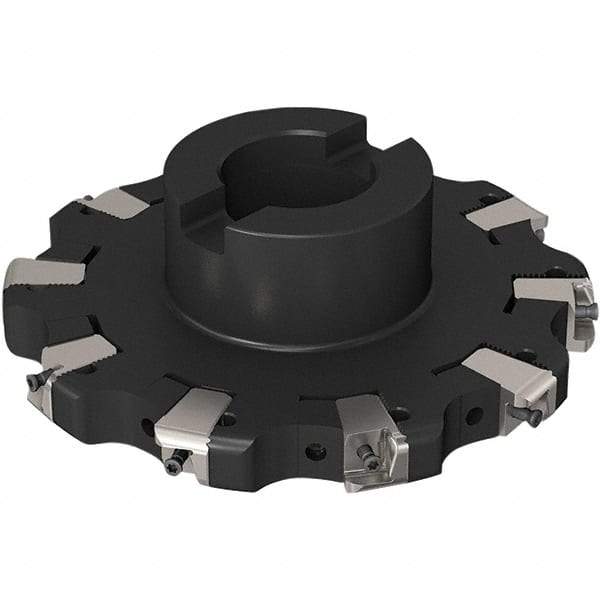

Seco - Shell Mount Connection, 0.669" Cutting Width, 43.82mm Depth of Cut, 160mm Cutter Diam, 40mm Hole Diam, 5 Tooth Indexable Slotting Cutter - R335.25 Toolholder, XNHQ 1407 Insert, Right Hand Cutting Direction
Item #: 48095293
Brand: Seco
Model #: 06322
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (mm) | 17.00 |
| Cutting Width (Decimal Inch) | 0.6690 |
| Maximum Depth of Cut (mm) | 43.82 |
| Cutter Diameter (mm) | 160.00 |
| Hole Diameter (mm) | 40.00 |
| Number of Teeth | 5 |
| Toolholder Style | R335.25 |
| Series | R335.25 |
| Insert Style | XNHQ 1407 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Cartridge |
| Insert Holding Method | Screw |
| Maximum RPM | 5700 |
| Number of Flutes | 10 |
| Maximum Cutting Width (mm) | 21.00 |
| Hub Diameter (mm) | 70.00 |
| Keyway Width (mm) | 16.40 |
| Through Coolant | No |
