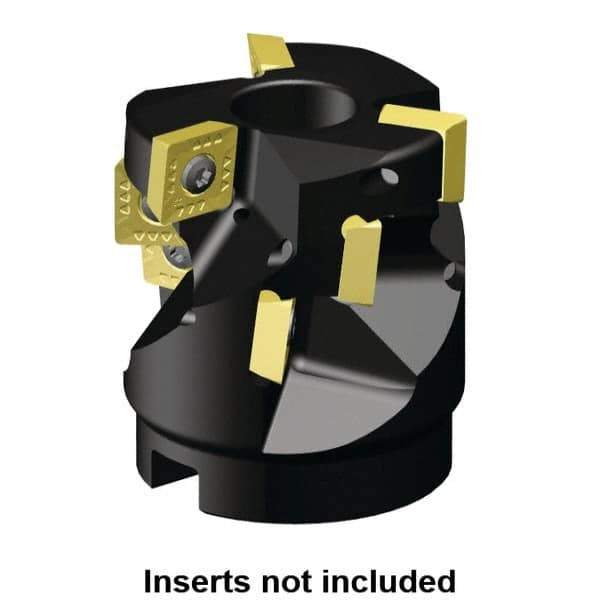

Kennametal - 9 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 32.36mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 55mm High, SD.T 1204.. Insert Compatibility, Series KSSM-KSSP
Item #: 48480677
Brand: Kennametal
Model #: 2400693
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 55.00 |
| Overall Height (Decimal Inch) | 2.1654 |
| Insert Compatibility | SD.T 1204.. |
| Series | KSSM-KSSP |
| Maximum Depth of Cut (mm) | 32.36 |
| Maximum Depth of Cut (Decimal Inch) | 1.2740 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 43.99 |
| Hub Diameter (Decimal Inch) | 1.7320 |
| Maximum Body Diameter (Decimal Inch) | 1.8740 |
| Maximum RPM | 16400 |
| Complete Insert Compatibility | SD.T 1204PD.R.. |
