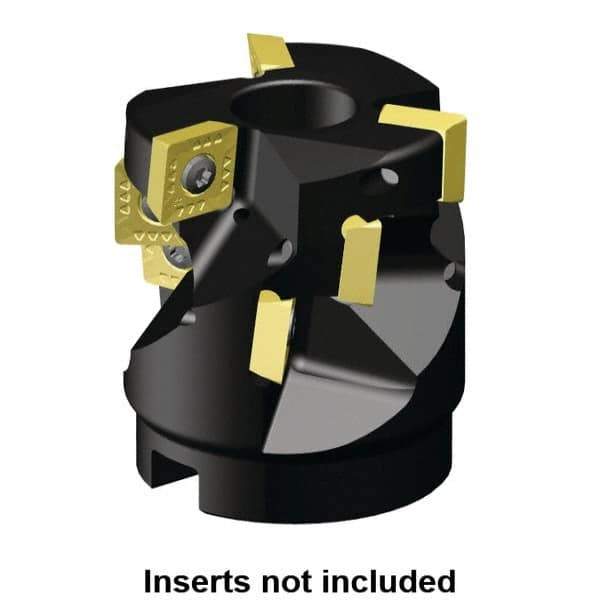

Kennametal - 15 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 51.16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 70mm High, SD.T 1204.. Insert Compatibility, Series KSSM-KSSP
Item #: 48480685
Brand: Kennametal
Model #: 2400694
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 70.00 |
| Overall Height (Decimal Inch) | 2.7560 |
| Insert Compatibility | SD.T 1204.. |
| Series | KSSM-KSSP |
| Maximum Depth of Cut (mm) | 51.16 |
| Maximum Depth of Cut (Decimal Inch) | 2.0140 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 54.99 |
| Hub Diameter (Decimal Inch) | 2.1650 |
| Maximum Body Diameter (Decimal Inch) | 2.3680 |
| Maximum RPM | 14600 |
| Complete Insert Compatibility | SD.T 1204PD.R.. |
