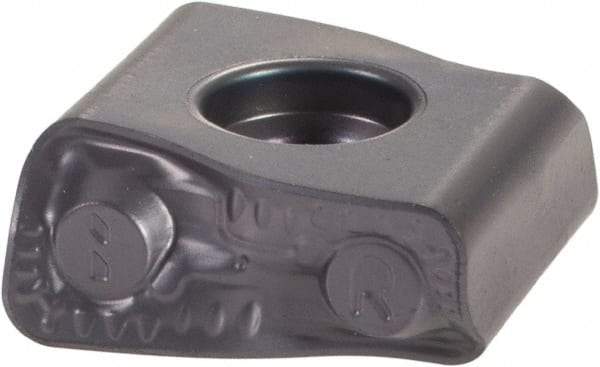

Iscar - LNMX150616 HT Grade IC907 Carbide Turning Insert - TiN/TiAlN Finish, 90° Rectangle, 0.528 Thick, 1/16" Corner Radius
Item #: 48776546
Brand: Iscar
Model #: 5506183
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 150616 |
| Material | Carbide |
| Length (mm) | 15.01 |
| Length (Decimal Inch) | 0.5910 |
| Thickness (Decimal Inch) | 0.5280 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC907 |
| Coating | TiN/TiAlN |
| Material Grade | Submicron |
| Chip Breaker | HT |
| ISO Number | LNMX 150616R-HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | LNMX 150616R-HT |
| Included Angle | 90 |
| Cutting Direction | Right Hand |
| Series | Heliturn |
| Insert Holding Method | Screw |
| MultiUseTool | Yes |
| Shape | Rectangle |
