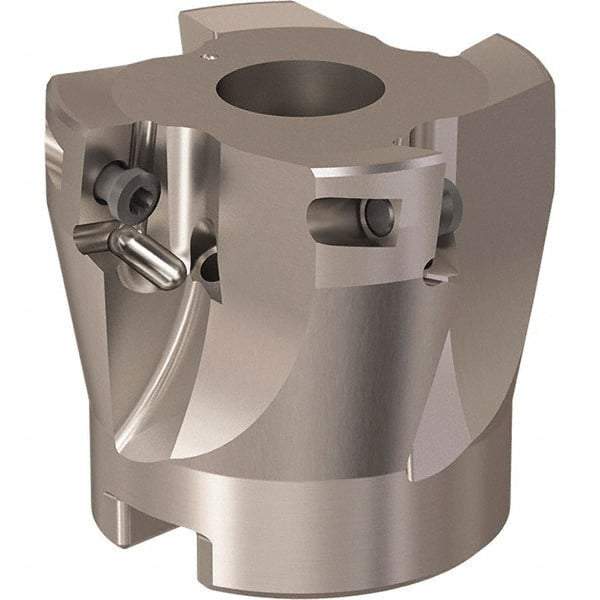

Seco - 4 Inserts, 44mm Cut Diam, 16mm Arbor Diam, 11mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, XO.X 12.. Insert Compatibility, Through Coolant, Series R220.69
Item #: 49094451
Brand: Seco
Model #: 44920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | XO.X 12.. |
| Series | R220.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 36.00 |
| Keyway Width (mm) | 8.40 |
| Keyway Depth (mm) | 6 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 15600 |
| Toolholder Material | Steel |
