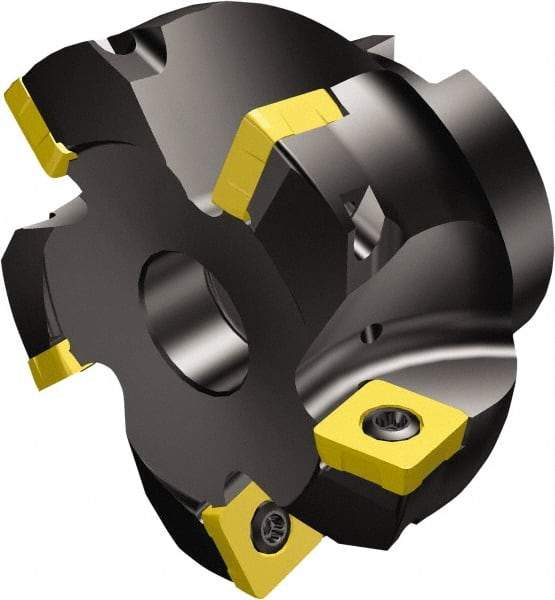

Sandvik Coromant - 8 Inserts, 5.0551" Cut Diam, 1-1/2" Arbor Diam, 0.0787" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 2.4803" High, R210-140512M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 49335698
Brand: Sandvik Coromant
Model #: 5739918
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.0551 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 10 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R210-140512M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | RA210..Rxx |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum Body Diameter (Decimal Inch) | 5.8287 |
| Maximum RPM | 10600 |
| ISO Number | RA210152R3814M |
| Complete Insert Compatibility | R210-140512M |
| Toolholder Material | Steel |
