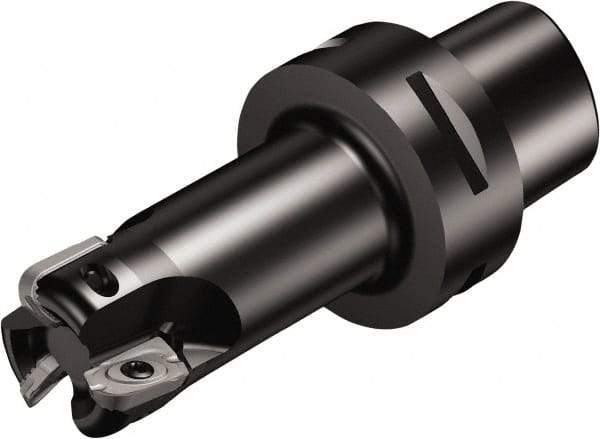

Sandvik Coromant - 5 Inserts, 44mm Cut Diam, 40mm Arbor Diam, 12mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 81mm High, R790-1604.. Insert Compatibility, Through Coolant, Series CoroMill 790
Item #: 49336167
Brand: Sandvik Coromant
Model #: 5912560
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 44.00 |
| Cutting Diameter (Decimal Inch) | 1.7323 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 90 |
| Overall Height (mm) | 81.00 |
| Overall Height (Decimal Inch) | 3.1890 |
| Insert Compatibility | R790-1604.. |
| Series | CoroMill 790 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R790 |
| Maximum RPM | 39000 |
| Cutting Edge Length (Decimal Inch) | 0.4724 |
| ISO Number | R790044C4S116H |
| Complete Insert Compatibility | R790-1604.. |
| Toolholder Material | Steel |
