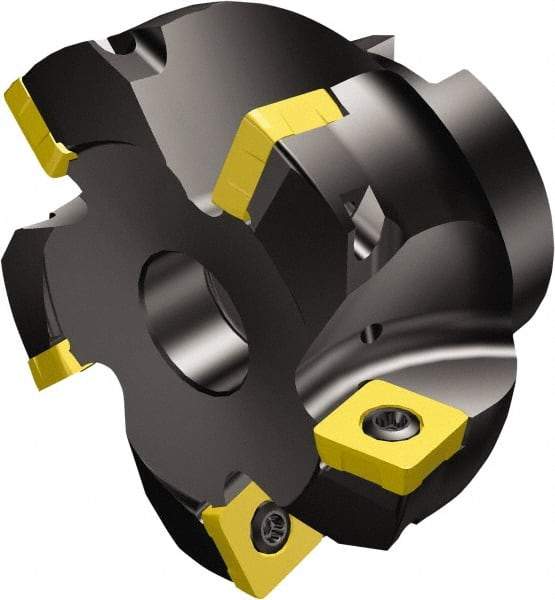

Sandvik Coromant - 8 Inserts, 136mm Cut Diam, 40mm Arbor Diam, 2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 63mm High, R210-140512M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 49336282
Brand: Sandvik Coromant
Model #: 5742533
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 136.00 |
| Cutting Diameter (Decimal Inch) | 5.3543 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Lead Angle | 10 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R210-140512M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R210..Qxx |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum Body Diameter (Decimal Inch) | 6.1280 |
| Maximum RPM | 10400 |
| ISO Number | R210160Q4014M |
| Complete Insert Compatibility | R210-140512M |
| Toolholder Material | Steel |
