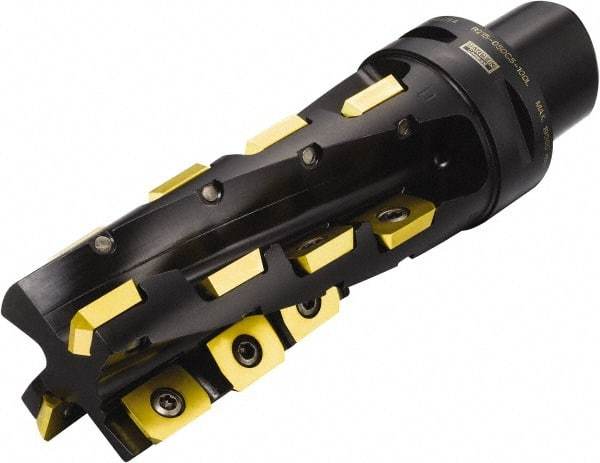

Sandvik Coromant - 2 Inserts, 80mm Cut Diam, 80mm Arbor Diam, 150mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 200mm High, LDHT 19 04 00 & LEHT 18 04 16 Insert Compatibility, Series U-Max
Item #: 49338296
Brand: Sandvik Coromant
Model #: 5743020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 80.00 |
| Arbor Hole Diameter (Decimal Inch) | 3.1496 |
| Lead Angle | 90 |
| Overall Height (mm) | 200.00 |
| Overall Height (Decimal Inch) | 7.8740 |
| Insert Compatibility | LDHT 19 04 00; LEHT 18 04 16 |
| Series | U-Max |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 150.00 |
| Maximum Depth of Cut (Decimal Inch) | 5.9055 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R215 |
| Maximum RPM | 5900 |
| Cutting Edge Length (Decimal Inch) | 5.9055 |
| ISO Number | R215080C8150L |
| Complete Insert Compatibility | LDHT 19 04 00; LEHT 18 04 16 |
| Toolholder Material | Steel |
