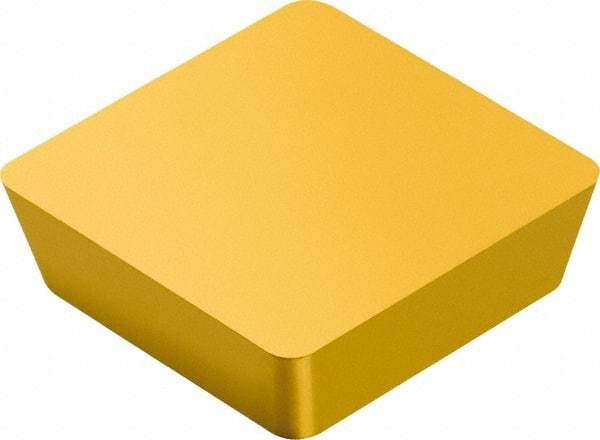

Sandvik Coromant - SPM422 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3.18mm Thick, 12.7mm Inscribed Circle, 0.8mm Corner Radius
Item #: 49339146
Brand: Sandvik Coromant
Model #: 5751594
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPM |
| Insert Size | 422 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Rake Angle | 0 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Neutral |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | ER Treated |
| Manufacturers Catalog Number | 5751594 |
| ISO Number | SPMN 12 03 08 235 |
