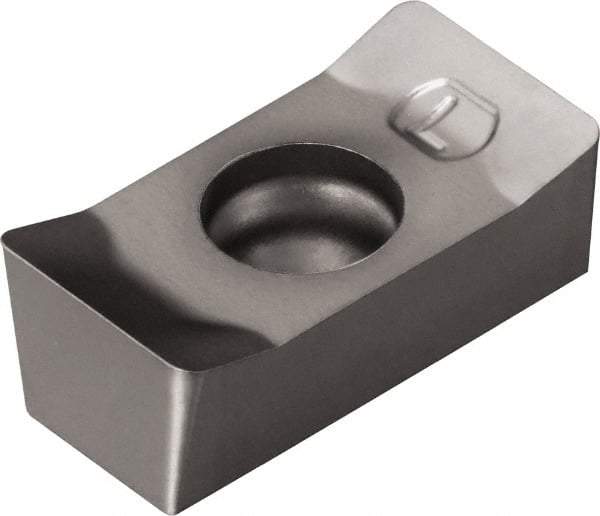

Sandvik Coromant - N331.1A043505 WL Grade H13A Carbide Milling Insert - Uncoated, 3.5mm Thick, 0.5mm Corner Radius
Item #: 49339849
Brand: Sandvik Coromant
Model #: 5738447
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N331.1A |
| Insert Size | 043505 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3740 |
| Thickness (mm) | 3.50 |
| Thickness (Decimal Inch) | 0.1378 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Hole Diameter (mm) | 2.60 |
| Hole Diameter (Decimal Inch) | 0.1024 |
| Relief Angle | 0.000 |
| Included Angle | 90 |
| Shape | Rectangle |
| Insert Hand | Neutral |
| Chipbreaker | WL |
| Maximum Depth of Cut (mm) | 4.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1811 |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | 5738447 |
| ISO Number | N331.1A-04 35 05H-WLH13A |
