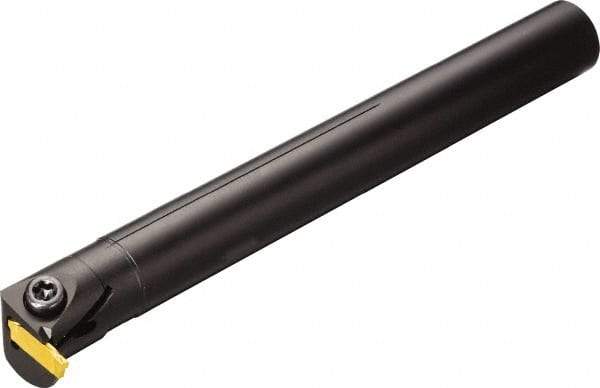

Sandvik Coromant - AG123, Internal, Left Hand, 7mm Max Depth of Cut, 2mm Max Groove Width, Indexable Grooving Tool Holder - N123..CM, N123..GM Insert Compatibility, 7-7/8" OAL, Through Coolant
Item #: 49344799
Brand: Sandvik Coromant
Model #: 5734792
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Groove Width (mm) | 2.00 |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Overall Length (Decimal Inch) | 7.8740 |
| Toolholder Style | AG123 |
| Insert Compatibility | N123..CM; N123..GM |
| Series | CoroCut 1-2 |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Coolant Hole Diameter (mm) | 9.00 |
| Insert Holding Method | Screw |
| Insert Seat Size | E |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Maximum Hole Depth (Decimal Inch) | 1.3780 |
| Maximum Bore Depth (Decimal Inch) | 1.3780 |
| igrvh Maximum Bore Depth (mm) | 35.00 |
| Center to Cutting Edge (mm) | 19.75 |
| Center to Cutting Edge (Decimal Inch) | 0.7776 |
| Head Length (Decimal Inch) | 1.3780 |
| Shank Length (Decimal Inch) | 6.4961 |
| Manufacturers Catalog Number | LAG123E07-25B |
| Toolholder Material | Steel |
| Complete Insert Compatibility | L123E2-0200-0502-CM; L123E2-0200-1501-CS; N123E1-0200-0002-CM; N123E2-0185-0001-GF; N123E2-0198-0002-GF; N123E2-0200-0002-C; N123E2-0200-0002-CM; N123E2-0200-0002-G; N123E2-0200-0002-GF; N123E2-0200-0002-GM; N123E2-0200-0004-GF; N123E2-0200-RO; N123E2-021 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Minimum BoreDiameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
