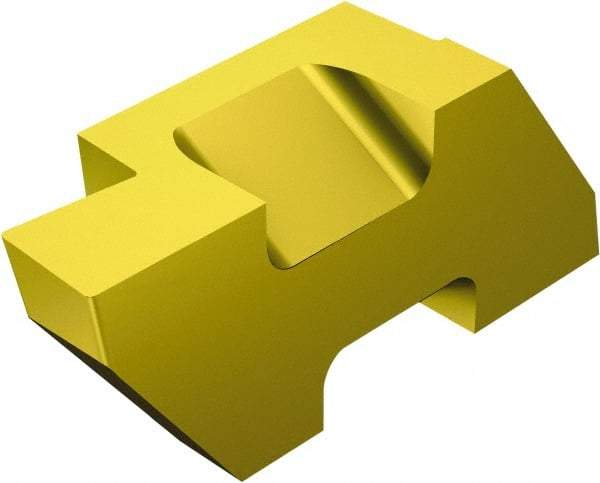

Sandvik Coromant - 4250TLG Grade 2135, 1/4" Cutting Width Carbide Grooving Insert - 1/4" Max Depth of Cut, Right Hand, 0.57mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49345507
Brand: Sandvik Coromant
Model #: 5753213
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLG |
| Insert Size | 4250 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Relief Angle | 10 |
| Insert Seat Size | 4 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting |
| Corner Radius (mm) | 0.57 |
| Corner Radius (Decimal Inch) | 0.0225 |
| Coating Process | MT-CVD |
| Series | Top Lok |
| ISO Number | TLG4250R2135 |
| Manufacturers Catalog Number | 5753213 |
| Insert Thickness (Decimal Inch) | 0.4530 |
| Insert Thickness (mm) | 11.5062 |
