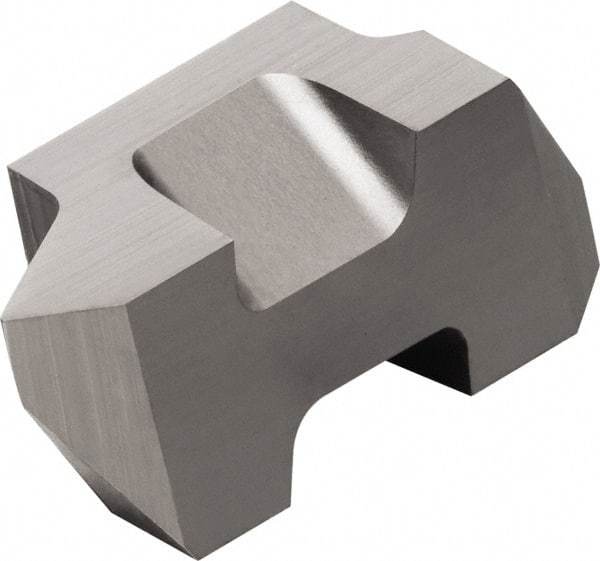

Sandvik Coromant - TLTP2 Grade H13A, Internal/External Partial Profile 60° Threading Insert - 0.7 to 3.5mm & 7 to 36 TPI Ext Pitch, 0.7 to 3.5mm & 7 to 36 TPI Int Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 49378227
Brand: Sandvik Coromant
Model #: 5753322
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TLTP |
| Insert Size | 2 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Manufacturer's Grade | H13A |
| Internal Pitch/TPI | 0.70-3.50 mm; 7-36 TPI |
| External Pitch/TPI | 0.70-3.50 mm; 7-36 TPI |
| Coating | Uncoated |
| Material | Carbide |
| ISO Number | TLTP2RH13A |
| Corner Radius (Decimal Inch) | 0.0040 |
| Thickness (Decimal Inch) | 0.2190 |
| Series | Top Lok |
| Included Angle of Threading Tip | 60 |
| Manufacturers Catalog Number | 5753322 |
