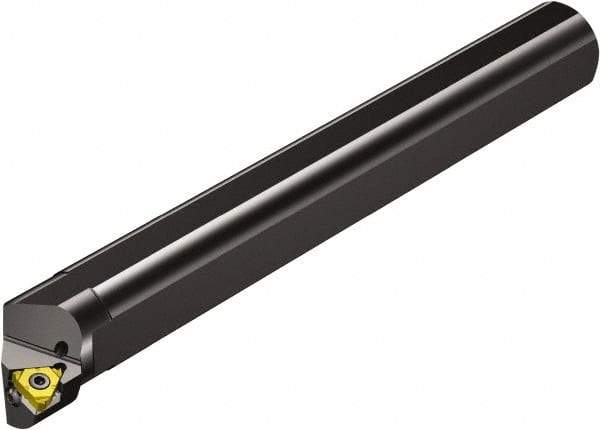

Sandvik Coromant - Internal Thread, Right Hand Cut, 1.2598" Shank Width x 1.1811" Shank Height Indexable Threading Toolholder - 9.8425" OAL, Various Insert Compatibility, 266.RL Toolholder, Series CoroThread 266
Item #: 49378508
Brand: Sandvik Coromant
Model #: 5758006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2598 |
| Shank Height (Decimal Inch) | 1.1811 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | 266RL-22AC01A060M; 266RL-22MM01A350M; 266RL-22MM01A400M; 266RL-22MM01A450M; 266RL-22MM01A500M; 266RL-22MM01A550M; 266RL-22RD01A100E; 266RL-22TR01F700E; 266RL-22UN01A040M; 266RL-22UN01A045M; 266RL-22UN01A050M; 266RL-22UN01A060M; 266RL-22UN01A070M; 266RL-22 |
| Series | CoroThread 266 |
| Toolholder Style | 266.RL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 21.90 |
| Center to Cutting Edge (Decimal Inch) | 0.8622 |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Head Length (Decimal Inch) | 1.4843 |
| Shank Length (Decimal Inch) | 8.3583 |
| Maximum Bore Depth (Decimal Inch) | 3.7795 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Pitch Range | 8 - 4 |
| Toolholder Material | Steel |
