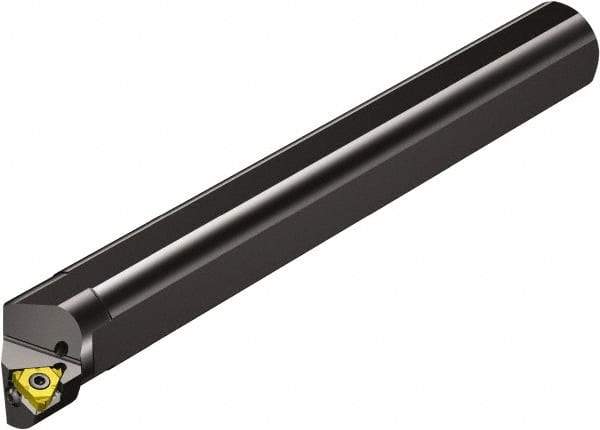

Sandvik Coromant - Internal Thread, Right Hand Cut, 1.5748" Shank Width x 1.4567" Shank Height Indexable Threading Toolholder - 11.811" OAL, Various Insert Compatibility, 266.RL Toolholder, Series CoroThread 266
Item #: 49378581
Brand: Sandvik Coromant
Model #: 5758010
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Shank Height (Decimal Inch) | 1.4567 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | 266RL-27AC01F030E; 266RL-27SA01F030E; 266RL-27TR01F800E; 266RL-27V381A0402E; 266RL-27V381A0403E; 266RL-27V401A0503E; 266RL-27V501A0402E; 266RL-27V501A0403E |
| Series | CoroThread 266 |
| Toolholder Style | 266.RL |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 1.0591 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Head Length (Decimal Inch) | 1.8583 |
| Shank Length (Decimal Inch) | 9.9528 |
| Maximum Bore Depth (Decimal Inch) | 4.7244 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
| Pitch Range | 4 - 3 |
| Toolholder Material | Steel |
