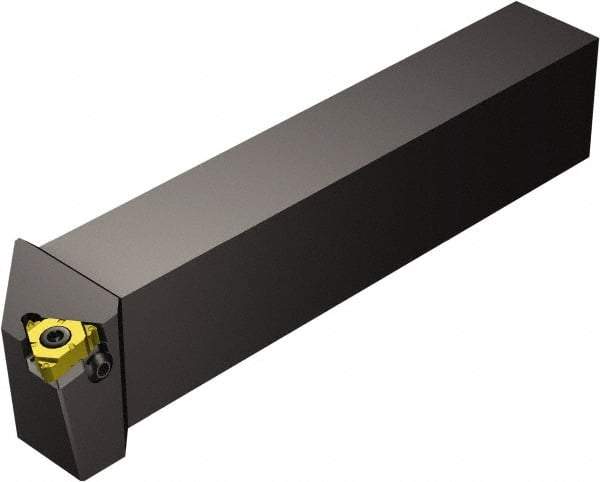

Sandvik Coromant - External Thread, Left Hand Cut, 25mm Shank Width x 25mm Shank Height Indexable Threading Toolholder - 150mm OAL, 266.LG-16.. Insert Compatibility, 266R/LFG Toolholder, Series CoroThread 266
Item #: 49378599
Brand: Sandvik Coromant
Model #: 5757733
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (Decimal Inch) | 5.9055 |
| Overall Length (mm) | 150.00 |
| Insert Compatibility | 266.LG-16.. |
| Series | CoroThread 266 |
| Toolholder Style | 266R/LFG |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 22.20 |
| Head Length (Decimal Inch) | 0.8740 |
| Toolholder Material | Steel |
