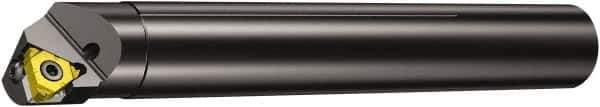

Sandvik Coromant - Internal Thread, Left Hand Cut, 1/2" Shank Width x 31/64" Shank Height Indexable Threading Toolholder - 8" OAL, Various Insert Compatibility, L166.0L Toolholder, Series T-Max U-Lock 166
Item #: 49378631
Brand: Sandvik Coromant
Model #: 5734473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 31/64 |
| Shank Height (Decimal Inch) | 0.4844 |
| Overall Length (Decimal Inch) | 8.0000 |
| Overall Length (Inch) | 8 |
| Insert Compatibility | L166.0L-11MM01-050; L166.0L-11MM01-075; L166.0L-11MM01-100; L166.0L-11MM01-125; L166.0L-11MM01-150; L166.0L-11MM01-175; L166.0L-11MM01-200; L166.0L-11UN01-140; L166.0L-11UN01-160; L166.0L-11UN01-180; L166.0L-11UN01-200; L166.0L-11UN01-240; L166.0L-11UN01- |
| Series | T-Max U-Lock 166 |
| Toolholder Style | L166.0L |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 8.99 |
| Center to Cutting Edge (Decimal Inch) | 0.3540 |
| Neck Diameter (Decimal Inch) | 0.5000 |
| Head Length (mm) | 23.60 |
| Head Length (Decimal Inch) | 0.9291 |
| Shank Length (Decimal Inch) | 7.0709 |
| Maximum Bore Depth (Decimal Inch) | 3.0000 |
| Minimum Bore Diameter (Decimal Inch) | 0.6300 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Pitch Range | 32 - 12 |
| Toolholder Material | Steel |
| Minimum Bore Diameter (mm) | 16 |
