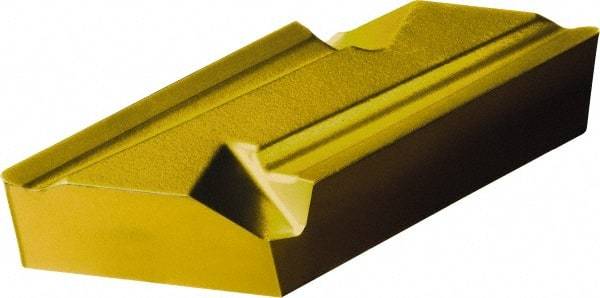

Sandvik Coromant - KNUX160410 L Grade 2025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 55° Parallelogram, 3/16" Thick, 1mm Corner Radius
Item #: 49417579
Brand: Sandvik Coromant
Model #: 5732391
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KNUX |
| Insert Size | 160410 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 1.00 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | L |
| ISO Number | KNUX160410L122025 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5732391 |
| Primary Workpiece Material | M |
| Included Angle | 55 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Insert Holding Method | Clamp |
| Shape | Parallelogram |
