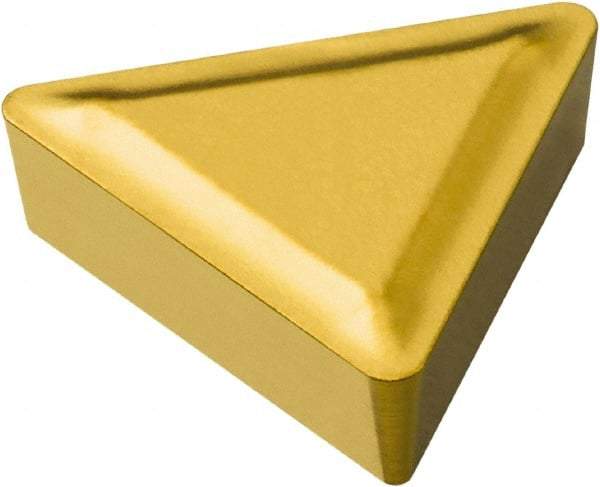

Sandvik Coromant - TCGR1.211 53 Grade 2025 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 1/16" Thick, 1/64" Corner Radius
Item #: 49418411
Brand: Sandvik Coromant
Model #: 5751710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCGR |
| Insert Size | 1.211 |
| Material | Carbide |
| Length (mm) | 6.62 |
| Length (Decimal Inch) | 0.2606 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0626 |
| Thickness (mm) | 1.59 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 2025 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | 53 |
| ISO Number | TCGR0601042025 |
| Relief Angle | 7 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5751710 |
| Primary Workpiece Material | M |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max S |
| Maximum Depth of Cut (mm) | 6.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.2449 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
