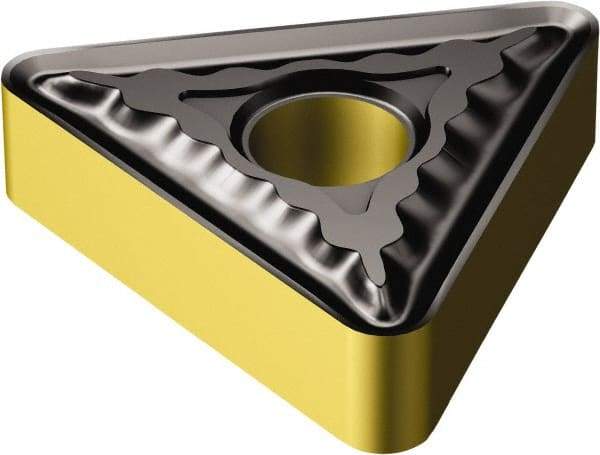

Sandvik Coromant - TNMG433 QM Grade 4315 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 49419286
Brand: Sandvik Coromant
Model #: 6612799
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMG |
| Insert Size | 433 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8661 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 4315 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | QM |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | TNMG220412QM4315 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 6612799 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 20.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.8189 |
| Insert Holding Method | Pin & Clamp |
| Shape | Triangle |
