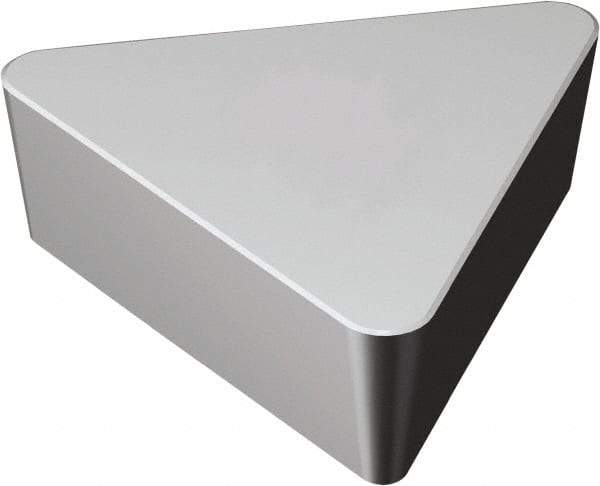

Sandvik Coromant - TPGN320 Grade H13A Carbide Turning Insert - Uncoated, 60° Triangle, 3/8" Inscr Circle, 1/8" Thick, 0mm Corner Radius
Item #: 49428832
Brand: Sandvik Coromant
Model #: 5754912
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGN |
| Insert Size | 320 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1252 |
| Thickness (mm) | 3.18 |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| ISO Number | TPGN160300H13A |
| Relief Angle | 11 |
| Manufacturers Catalog Number | 5754912 |
| Primary Workpiece Material | K; N; S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 16.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.6457 |
| Insert Holding Method | Clamp |
| Shape | Triangle |
