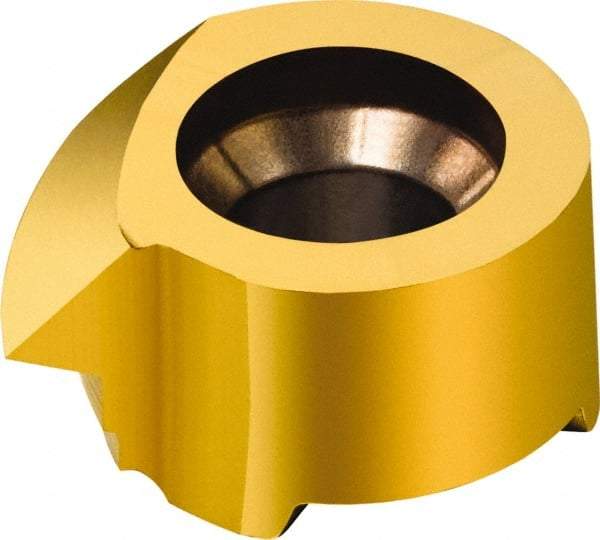

Sandvik Coromant - MB7 Grade 1025, Internal NPT Threading Insert - 14 TPI Int Pitch, Left Hand Insert, Carbide
Item #: 49444714
Brand: Sandvik Coromant
Model #: 5849032
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB |
| Insert Size | 7 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | NPT |
| Manufacturer's Grade | 1025 |
| Internal Pitch/TPI | 14 TPI |
| Material | Carbide |
| ISO Number | MB07TH140NT10L1025 |
| Corner Radius (mm) | 0.07 |
| Corner Radius (Decimal Inch) | 0.0028 |
| Series | CoroCut MB |
| Included Angle of Threading Tip | 60 |
| Blade Width (mm) | 5.80 |
| Blade Width (Decimal Inch) | 0.2283 |
| Overall Length (Decimal Inch) | 0.1496 |
| Manufacturers Catalog Number | 5849032 |
| Maximum Depth of Cut (mm) | 1.48 |
| Maximum Depth of Cut (Decimal Inch) | 0.0583 |
