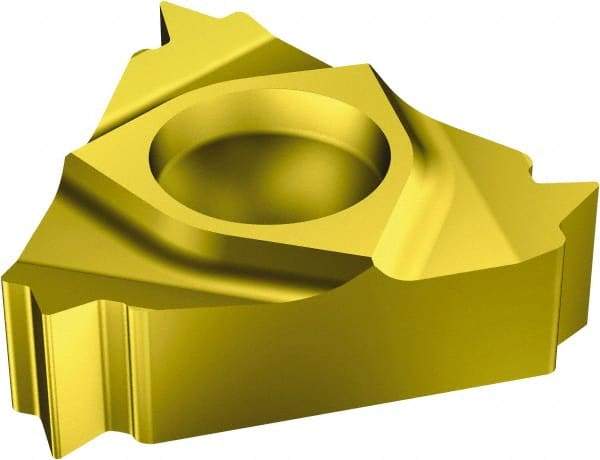

Sandvik Coromant - 166.0011 A Grade 1020, Internal Metric 60° Threading Insert - 0.75mm Int Pitch, Left Hand Insert, Carbide
Item #: 49446339
Brand: Sandvik Coromant
Model #: 5734436
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 166.00 |
| Insert Size | 11 |
| Thread Type | Internal |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | Metric 60 Degrees |
| Manufacturer's Grade | 1020 |
| Internal Pitch/TPI | 0.75 mm |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | L1660L11MM010751020 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Series | T-Max U-Lock |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5734436 |
