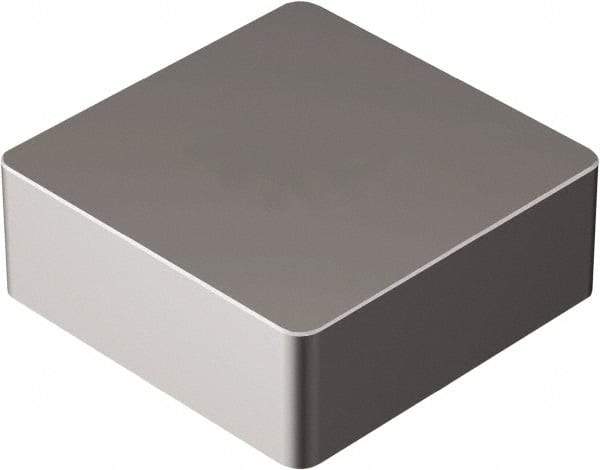

Sandvik Coromant - SNGN454 Grade 650 Ceramic Turning Insert - TiN Finish, 90° Square, 1/2" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 49455496
Brand: Sandvik Coromant
Model #: 5749790
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SNGN |
| Insert Size | 454 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | SNGN120716T01020650 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5749790 |
| Primary Workpiece Material | K; S |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Maximum Depth of Cut (mm) | 11.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.4370 |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Negative Land |
| Shape | Square |
