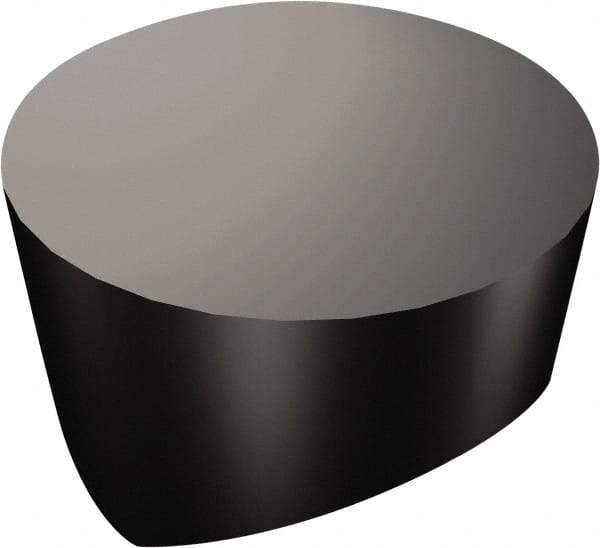

Sandvik Coromant - RCGX45 Grade 6065 Ceramic Turning Insert - Uncoated, Round, 1/2" Inscr Circle, 5/16" Thick
Item #: 49456189
Brand: Sandvik Coromant
Model #: 5740338
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RCGX |
| Insert Size | 45 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 6065 |
| Coating | Uncoated |
| ISO Number | RCGX120700E6065 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740338 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Shape | Round |
