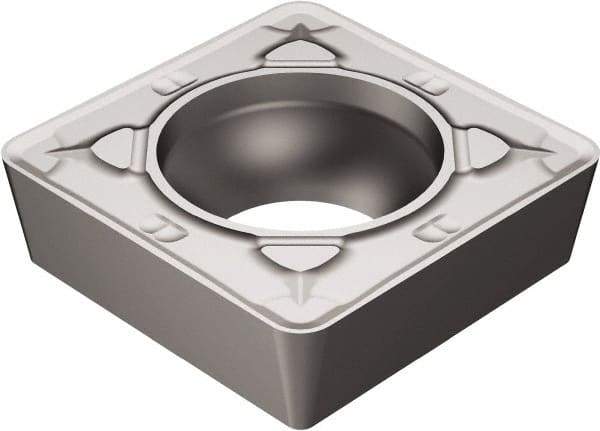

Sandvik Coromant - SCMT433 KR Grade H13A Carbide Turning Insert - Uncoated, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 49456387
Brand: Sandvik Coromant
Model #: 5749440
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | KR |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| ISO Number | SCMT120412KRH13A |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5749440 |
| Primary Workpiece Material | K; N; S |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 11.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4528 |
| Insert Holding Method | Screw |
| Shape | Square |
