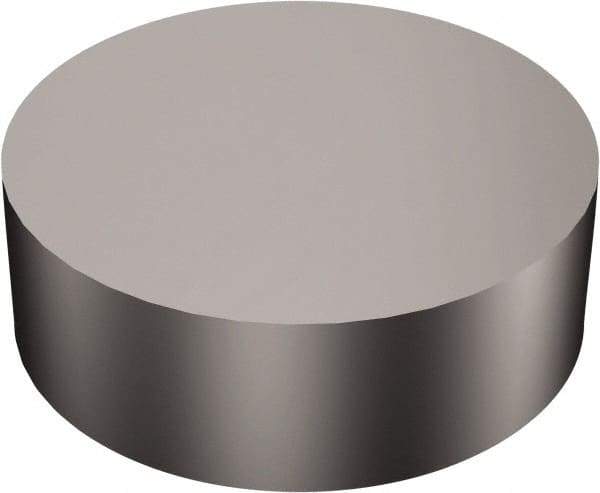

Sandvik Coromant - RNGN43 Grade 6060 Ceramic Turning Insert - Uncoated, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 49457187
Brand: Sandvik Coromant
Model #: 6010733
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNGN |
| Insert Size | 43 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | 6060 |
| Coating | Uncoated |
| ISO Number | RNGN120400E6060 |
| Relief Angle | 0 |
| Manufacturers Catalog Number | 6010733 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Shape | Round |
