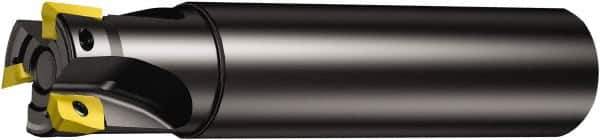

Sandvik Coromant - 3/4" Cut Diam, 5.8mm Max Depth of Cut, 3/4" Shank Diam, 110mm OAL, Indexable Square Shoulder End Mill - 390R-070204E-ML Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 49461957
Brand: Sandvik Coromant
Model #: 6851129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (mm) | 110.00 |
| Overall Length/Projection (Decimal Inch) | 4.3307 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | RA390-019O19-07H |
| Number of Flutes | 5 |
| Head Length (Inch) | 63/64 |
| Head Length (Decimal Inch) | 0.9844 |
| Weldon Flat | No |
| Insert Compatibility | 390R-070204E-ML |
| Shank Length (Decimal Inch) | 3.3465 |
| Maximum RPM | 33500 |
| Toolholder Material | Steel |
