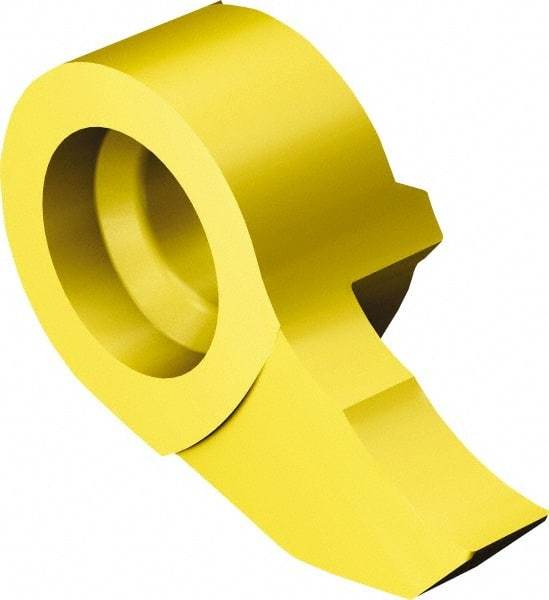

Sandvik Coromant - MB..G Grade 1025, 2mm Cutting Width Carbide Grooving Insert - 6.5mm Max Depth of Cut, Left Hand, TiAlN/TiN Finish
Item #: 49507775
Brand: Sandvik Coromant
Model #: 5735733
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | MB..G |
| Material | Carbide |
| Cutting Width (mm) | 2.00 |
| Cutting Width (Decimal Inch) | 0.0787 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Manufacturer's Grade | 1025 |
| Coating | TiAlN/TiN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 90 |
| Relief Angle | 2 |
| Coating Process | PVD |
| Overall Length (mm) | 5.90 |
| Overall Length (Inch) | 5.9000 |
| Overall Length (Decimal Inch) | 0.2323 |
| Series | CoroCut MB |
| ISO Number | MB-09G200-00-17L 1025 |
