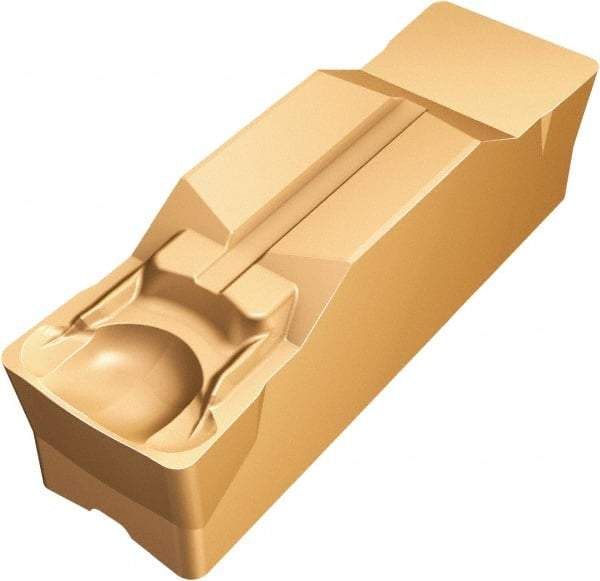

Sandvik Coromant - M1N123 GM Grade 1145, 10mm Cutting Width Carbide Grooving Insert - Neutral, TiAlN/AlCr2O3 Finish
Item #: 49508393
Brand: Sandvik Coromant
Model #: 5736574
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | M1 |
| Material | Carbide |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 7.05 |
| Cutting Height (Decimal Inch) | 0.2776 |
| Relief Angle | 7 |
| Insert Seat Size | M |
| Chipbreaker | GM |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | CoroCut 1-2 |
| ISO Number | N123M1-1000-0008-GM 1145 |
| Insert Thickness (Decimal Inch) | 0.2776 |
