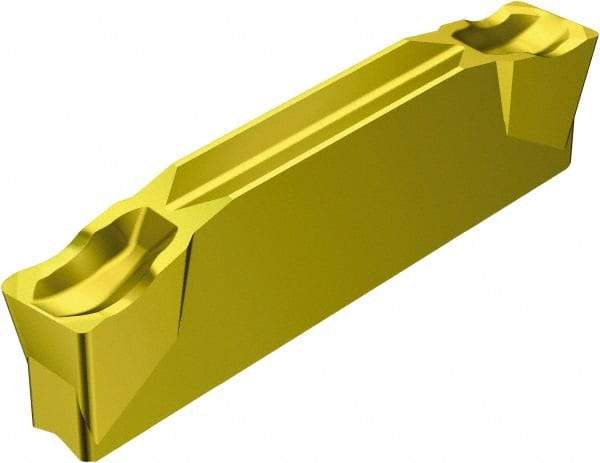

Sandvik Coromant - L123H2 CR Grade 2135, 4mm Cutting Width Carbide Cutoff Insert - 0.3mm Corner Radius, TiCN/Al2O3/TiN Finish
Item #: 49508625
Brand: Sandvik Coromant
Model #: 5734130
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | L123 |
| Insert Size | H2 |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | 2135 |
| Coating | TiCN/Al2O3/TiN |
| Series | CoroCut 1-2 |
| Relief Angle | 7 |
| Chipbreaker | CR |
| Maximum Depth of Cut (mm) | 23.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.9331 |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.011811 |
| Corner Radius (mm) | 0.3 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Insert Seat Size | H |
