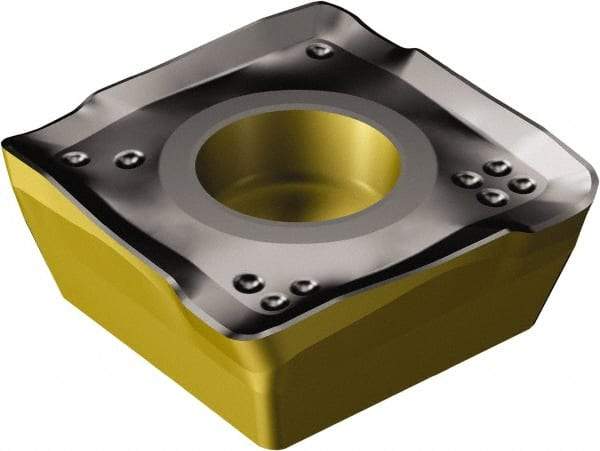

Sandvik Coromant - 490R140416 PM Grade 3220 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.9mm Thick, 13.8mm Inscribed Circle
Item #: 49516073
Brand: Sandvik Coromant
Model #: 5922155
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 490R |
| Insert Size | 140416 |
| Material | Carbide |
| Manufacturer's Grade | 3220 |
| Coating | TiCN/Al2O3/TiN |
| Inscribed Circle (mm) | 13.80 |
| Inscribed Circle (Decimal Inch) | 0.5433 |
| Thickness (mm) | 3.90 |
| Thickness (Decimal Inch) | 0.1535 |
| Hole Diameter (mm) | 4.10 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Relief Angle | 16.000 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | PM |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Rounded |
| ISO Number | 490R-140416M-PM 3220 |
