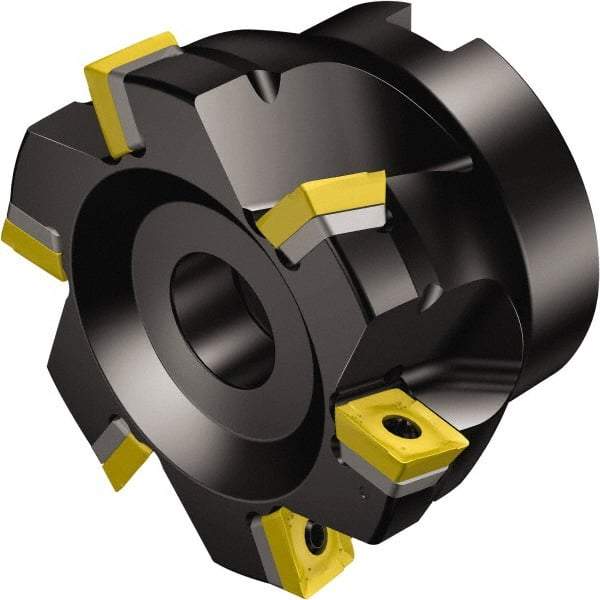

Sandvik Coromant - 12 Inserts, 160mm Cut Diam, 50.8mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, 490R-1404 Insert Compatibility, Series CoroMill 490
Item #: 49519432
Brand: Sandvik Coromant
Model #: 5844002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (mm) | 50.80 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Jxx |
| Maximum RPM | 6800 |
| ISO Number | A490-160J50.8-14M |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
