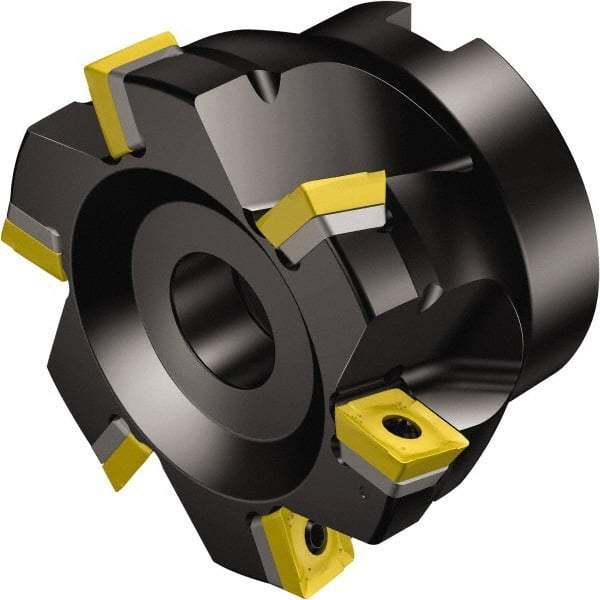

Sandvik Coromant - 6 Inserts, 125mm Cut Diam, 38.1mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 63mm High, 490R-1404 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49519440
Brand: Sandvik Coromant
Model #: 5844000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | 490R-1404 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | A490..Jxx |
| Maximum RPM | 7800 |
| ISO Number | A490-125J38.1-14L |
| Complete Insert Compatibility | 490R-1404 |
| Toolholder Material | Steel |
