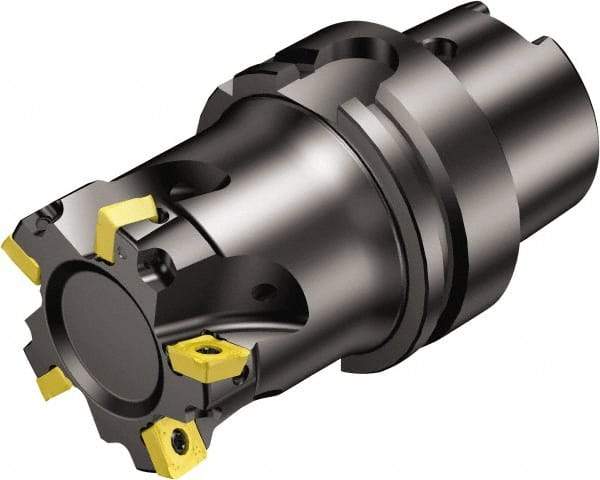

Sandvik Coromant - 3 Inserts, 25mm Cut Diam, 63mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 127mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49520372
Brand: Sandvik Coromant
Model #: 5762128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Arbor Hole Diameter (mm) | 63.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 127.00 |
| Overall Height (Decimal Inch) | 5.0000 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | 490..HAxx |
| Maximum RPM | 30000 |
| ISO Number | 490-025HA06-08M |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
