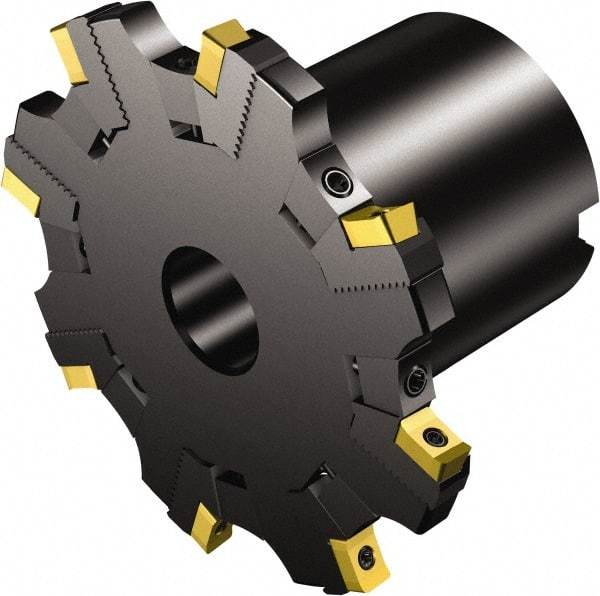

Sandvik Coromant - 40 Connection, 155mm Cutter Diam, 1.5748" Hole Diam, 12 Tooth Indexable Slotting Cutter - R331.52..Qxx..R Toolholder, N331.1A-08 Insert, Right Hand Cutting Direction
Item #: 49521693
Brand: Sandvik Coromant
Model #: 5745211
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 40 |
| Cutter Diameter (mm) | 155.00 |
| Cutter Diameter (Decimal Inch) | 6.1024 |
| Hole Diameter (mm) | 40.00 |
| Hole Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | 40 |
| Number of Teeth | 12 |
| Toolholder Style | R331.52..Qxx..R |
| Series | CoroMill 331 |
| Insert Style | N331.1A-08 |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 12400 |
| Maximum RPM | 12400 |
| Hub Diameter (mm) | 76.00 |
| Hub Diameter (Decimal Inch) | 2.9921 |
| Hub Diameter (mm) | 76.00 |
| Hub Diameter (Decimal Inch) | 2.9921 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-08 |
