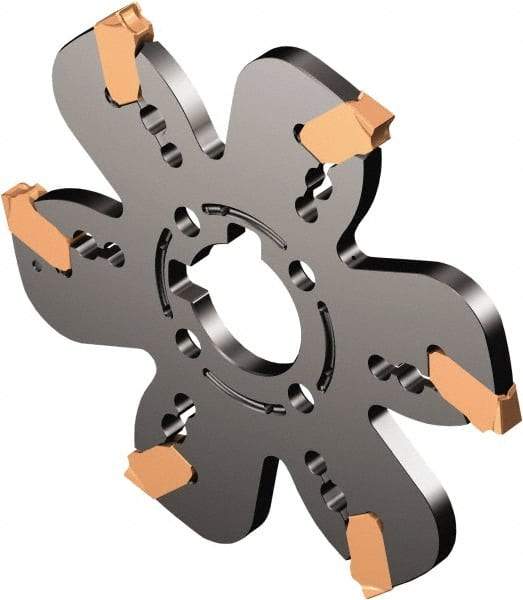

Sandvik Coromant - 0.1575" Cutting Width, 1.1811" Depth of Cut, 100mm Cutter Diam, 0.8661" Hole Diam, Indexable Slotting Cutter - 0.8661" Shank Diam, QD..X..C Toolholder, Right Hand Cutting Direction
Item #: 49522881
Brand: Sandvik Coromant
Model #: 6657457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Cutting Width (Decimal Inch) | 0.15748 |
| Cutting Width (mm) | 4 |
| Maximum Depth of Cut (mm) | 30.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 30 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 22.00 |
| Hole Diameter (Decimal Inch) | 0.8661 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Inch) | 0.866142 |
| Modular Connection Size | X22 |
| Toolholder Style | QD..X..C |
| Series | CoroMill QD |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Maximum RPM | 4400 |
| Maximum RPM | 4400 |
| Through Coolant | Yes |
| Complete Insert Compatibility1 | QD-NH-0400-025E-PM |
| Overall Height (mm) | 3.65 |
| Overall Height (Decimal Inch) | 0.1437 |
