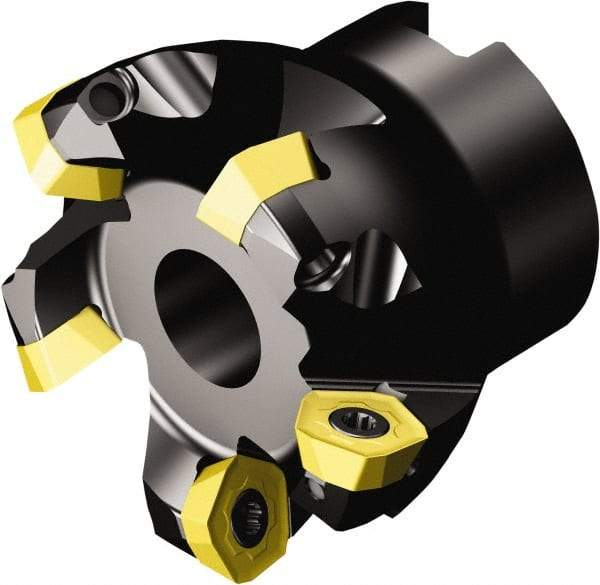

Sandvik Coromant - 39.4mm Cut Diam, 22mm Arbor Hole, 2mm Max Depth of Cut, 19° Indexable Chamfer & Angle Face Mill - 5 Inserts, 419R-1405 Insert, Right Hand Cut, Series CoroMill 419
Item #: 49524119
Brand: Sandvik Coromant
Model #: 6449362
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 39.4 |
| Cutting Diameter (Decimal Inch) | 1.5512 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 19 |
| Overall Height (mm) | 45 |
| Insert Compatibility | 419R-1405 |
| Series | CoroMill 419 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.07874 |
| Number of Cutter Inserts | 5 |
| Cutter Style | 419..Qxx |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 16800 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 419R-1405 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 419R-1405 |
| Maximum RPM | 16800 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
