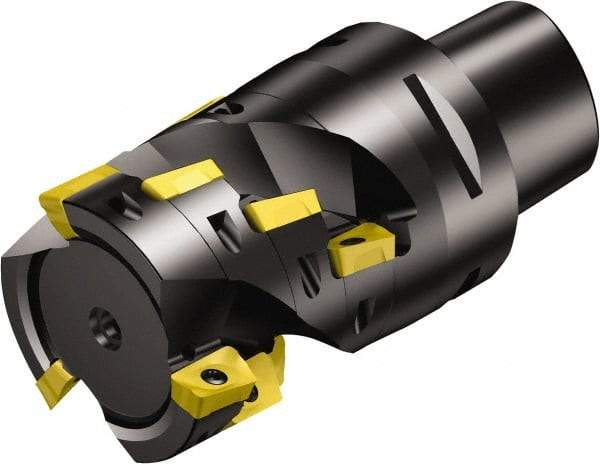

Sandvik Coromant - 24 Inserts, 40mm Cut Diam, 50mm Arbor Diam, 54mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 119.4mm High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49525264
Brand: Sandvik Coromant
Model #: 5745419
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Arbor Hole Diameter (mm) | 50.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 119.40 |
| Overall Height (Decimal Inch) | 4.7008 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 54.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.1260 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Cx (LE) |
| Maximum RPM | 18900 |
| ISO Number | R390-040C5-54H |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
