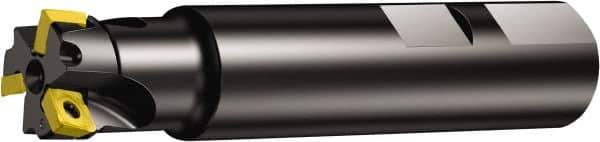

Sandvik Coromant - 2 Inserts, 25mm Cut Diam, 20mm Arbor Diam, 5.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 83mm High, 490R-08T308 Insert Compatibility, Through Coolant, Series CoroMill 490
Item #: 49528383
Brand: Sandvik Coromant
Model #: 5762115
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Arbor Hole Diameter (mm) | 20.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.7874 |
| Overall Height (mm) | 83.00 |
| Overall Height (Decimal Inch) | 3.2677 |
| Insert Compatibility | 490R-08T308 |
| Series | CoroMill 490 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2165 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | 490..Bxx |
| Maximum RPM | 40400 |
| ISO Number | 490-025B20-08L |
| Complete Insert Compatibility | 490R-08T308 |
| Toolholder Material | Steel |
