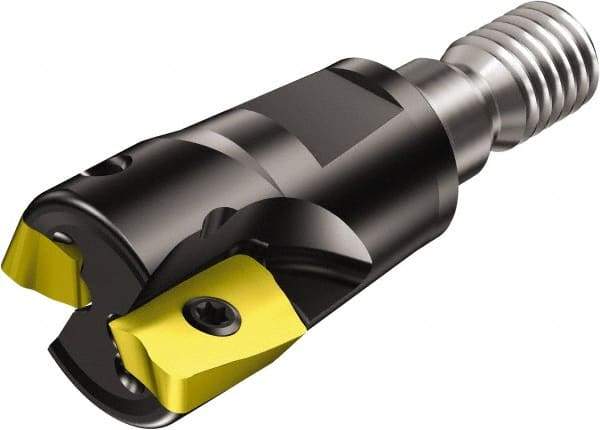

Sandvik Coromant - 2 Inserts, 25mm Cut Diam, 20.8mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 57mm High, R390-11.. Insert Compatibility, Through Coolant, Series CoroMill 390
Item #: 49540693
Brand: Sandvik Coromant
Model #: 5746651
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Arbor Hole Diameter (mm) | 20.80 |
| Arbor Hole Diameter (Decimal Inch) | 0.8189 |
| Overall Height (mm) | 57.00 |
| Overall Height (Decimal Inch) | 2.2441 |
| Insert Compatibility | R390-11.. |
| Series | CoroMill 390 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | R390..Txx |
| Maximum RPM | 8100 |
| ISO Number | R390-25T12-11L |
| Complete Insert Compatibility | R390-11.. |
| Toolholder Material | Steel |
