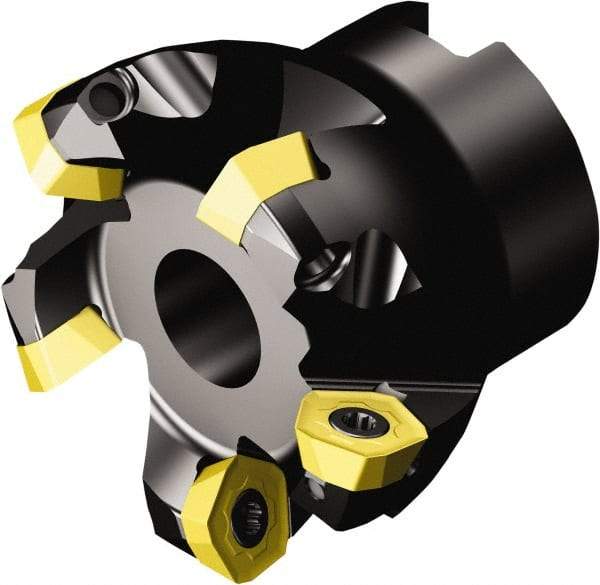

Sandvik Coromant - 85.3mm Cut Diam, 32mm Arbor Hole, 2mm Max Depth of Cut, 19° Indexable Chamfer & Angle Face Mill - 6 Inserts, 419R-1405 Insert, Right Hand Cut, Series CoroMill 419
Item #: 49541154
Brand: Sandvik Coromant
Model #: 6289898
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 85.3 |
| Cutting Diameter (Decimal Inch) | 3.3583 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 19 |
| Overall Height (mm) | 50 |
| Insert Compatibility | 419R-1405 |
| Series | CoroMill 419 |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.07874 |
| Number of Cutter Inserts | 6 |
| Cutter Style | 419..Qxx |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Maximum RPM | 11400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | 419R-1405 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | 419R-1405 |
| Maximum RPM | 11400 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
