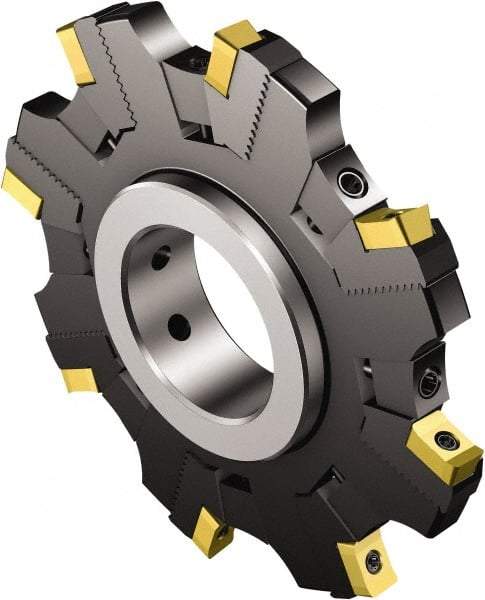

Sandvik Coromant - 32 Connection, 97mm Cutter Diam, 1.2598" Hole Diam, 8 Tooth Indexable Slotting Cutter - R/L331.52..Sxx Toolholder, N331.1A-08 Insert, Left Hand Cutting Direction
Item #: 49541386
Brand: Sandvik Coromant
Model #: 5734385
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 32 |
| Cutter Diameter (mm) | 97.00 |
| Cutter Diameter (Decimal Inch) | 3.8189 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Modular Connection Size | 32 |
| Number of Teeth | 8 |
| Toolholder Style | R/L331.52..Sxx |
| Series | CoroMill 331 |
| Insert Style | N331.1A-08 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Left Hand |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 15900 |
| Maximum RPM | 15900 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Keyway Width (mm) | 8.00 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-08 |
