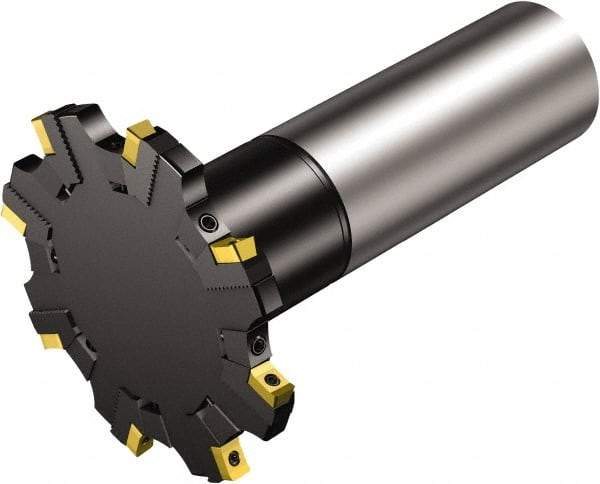

Sandvik Coromant - 42 Connection, 97mm Cutter Diam, 1.6535" Hole Diam, 8 Tooth Indexable Slotting Cutter - R331.52..Axx..R Toolholder, N331.1A-08 Insert, Right Hand Cutting Direction
Item #: 49542087
Brand: Sandvik Coromant
Model #: 5744975
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | 42 |
| Cutter Diameter (mm) | 97.00 |
| Cutter Diameter (Decimal Inch) | 3.8189 |
| Hole Diameter (mm) | 42.00 |
| Hole Diameter (Decimal Inch) | 1.6535 |
| Modular Connection Size | 42 |
| Number of Teeth | 8 |
| Toolholder Style | R331.52..Axx..R |
| Series | CoroMill 331 |
| Insert Style | N331.1A-08 |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Insert Holding Method | Screw |
| Maximum RPM | 15900 |
| Maximum RPM | 15900 |
| Lead Angle | 90 |
| Through Coolant | No |
| Complete Insert Compatibility1 | N331.1A-08 |
